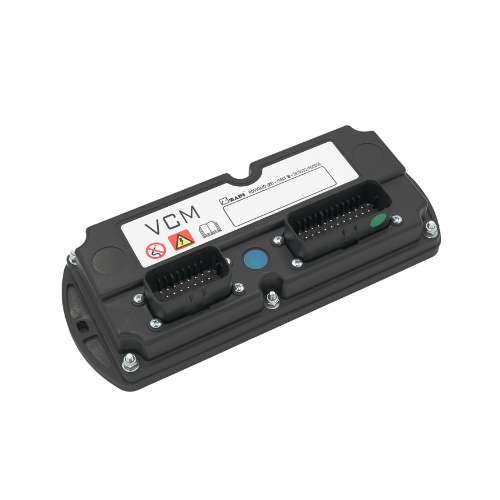

VCM Series



VCM

VCM Standard
Power supply 36V, 48V, 80V
Ambient temperature range -40° +50°C
Dimensions 90x225x49 mm
Connector Ampseal 35 pins (standard version)
Ampseal 35 and 23 pins (premium version)
Protection IP65
  Standard Premium
Digital inputs 7 11
Analog inputs 2 10
PWM Current controlled outputs 8 9
PWM Voltage controlled outputs 2 3
+12V Supply 1 1
+5V Supply 1 1
CAN Interface 2 2



CAN TILLER

CANTILLER
  • Power supply 12-24Vdc
  • 4 analog input 0-5V or 0-12V
  • 12 digital input 12-24Vdc
  • Mini-Fit connector
  • IP54 Protection
  • Temperature range standard version: -30 °C  ÷ 80 °C
  • CAN interface
