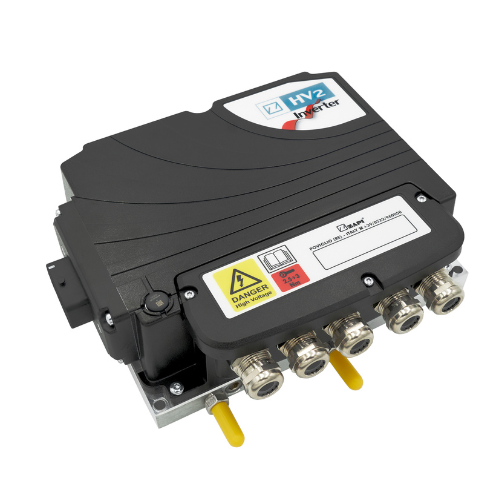

High Voltage


  • Power Section
  • Mechanics
  • Features
Power supply 350 V, 650 V
Maximum current (1') 350 V: 120 Arms
650 V: 70 Arms
Maximum current (60') 350 V: 90 Arms
650 V: 740 Arms
Ambient temperature range -40°C ÷ +85°C


Dimensions 250x200x87.5 mm (baseplate and water-cooled version)
250x200x129 mm (heatsink version)
Connector Molex CMC 48 pin
Protection IP6K9K
Options Al base plate, water-cooled (WEG) or finned heatsink
  • Double microcontroller architecture
  • Can interface
  • FOC control (with torque or speed control)
  • Digital I/O
  • Analog input
  • Isolated logic
